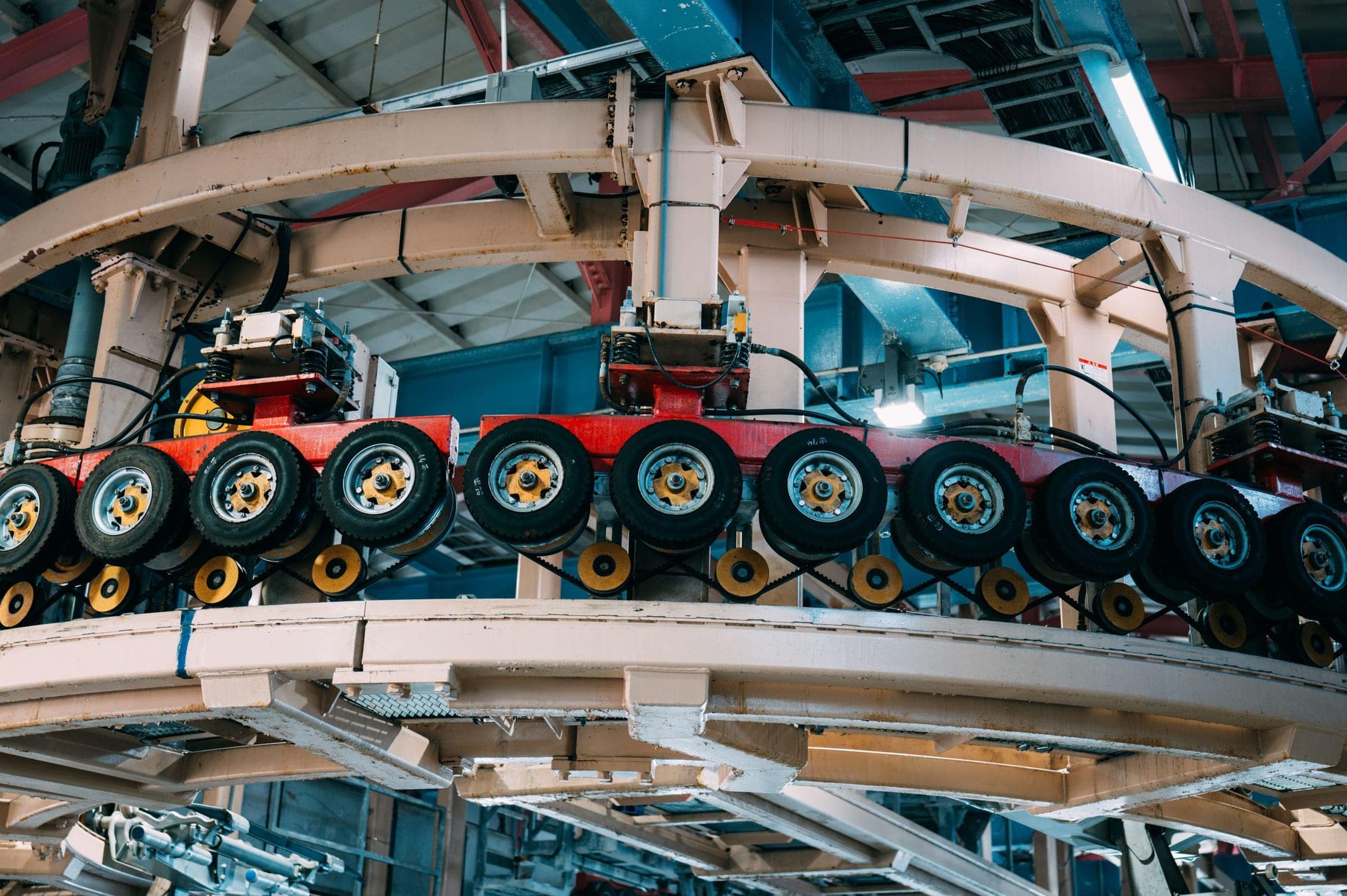

Large industrial machine with roller assemblies inside a production hall

04 / Services

Industrial Installation

Multi-discipline installation under one responsibility.

01Overview

Many industrial packages are not one discipline. They are a machine that needs setting, a pipe run that needs connecting, a panel that needs terminating — and a coordinator who owns all three.

Plejad takes multi-discipline installation packages where the value is in the coordination: one interface for the main contractor, one sequence, one punch list.

02Capabilities

What this discipline covers.

01Coordinated mechanical, piping and E&I installation
02Setting and alignment of machines and process equipment
03Interconnecting piping, services and utilities
04Skid and modular unit installation and hook-up
05Interface management with other site contractors
06Single punch list and completion documentation

03Typical scope

Work packages typically contracted under this discipline.

—New production line installation and hook-up
—Relocation of equipment within an operating plant
—Modular skid installation and interconnection
—Capacity expansion within an existing building
—Brownfield tie-in packages across disciplines

Scope is confirmed per project. Capabilities listed here are indicative and adjusted to the specification, permit regime and client procedures of each site.

04Execution approach

How the discipline is planned, staffed and closed out.

01
One point of contact
The client speaks to one supervisor about the whole package, not to three trades who each blame the other two.
02
Sequenced access
Discipline order is planned around access and lifting, which is what actually constrains a congested installation.
03
Alignment records
Equipment setting, levelling and alignment are measured and recorded before the connecting works close them in.
04
Completion as one
The package is walked down and handed over once, with the full documentation set rather than three partial ones.
